Automatic Full Hex Multi-block Structured Meshing of Multi-stage Turbomachinery
AutoGrid5TM is a full automatic hexahedral grid generator for all types of rotating machinery: complex axial, radial, and mixed-flow configurations. AutoGrid5TM produces grids in a few minutes, with a few clicks through a wizard based interface.
This product is part of AutoMeshTM.

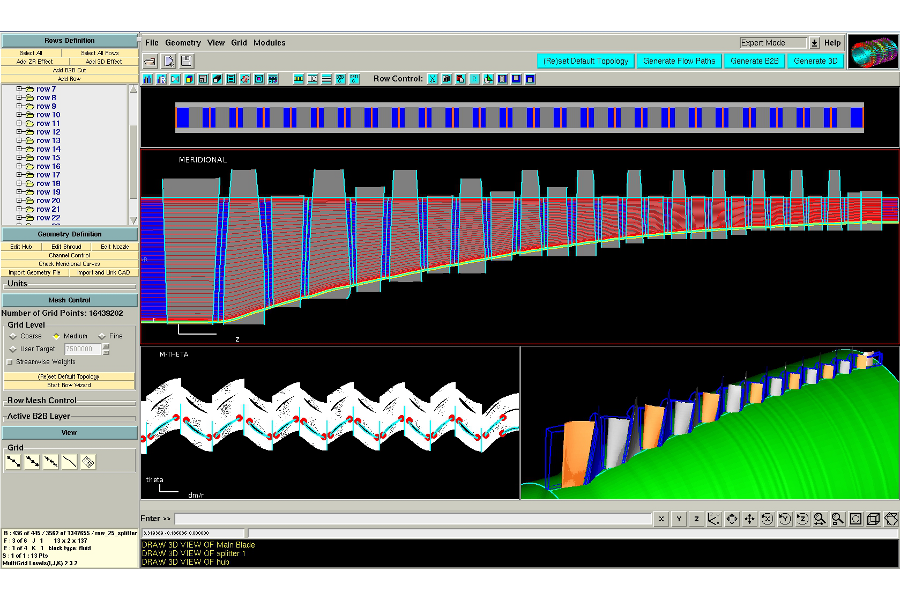

Watch this video and learn more about the powerful, yet easy to use, Row Mesh Setup Assistant of AutoGrid5TM.
Optimized topologies according to geometrical configurations;
Automatic grid points distribution according to user's grid size requirements;
Free user-defined topologies;
Advanced smoothing algorithms yielding a high grid quality;

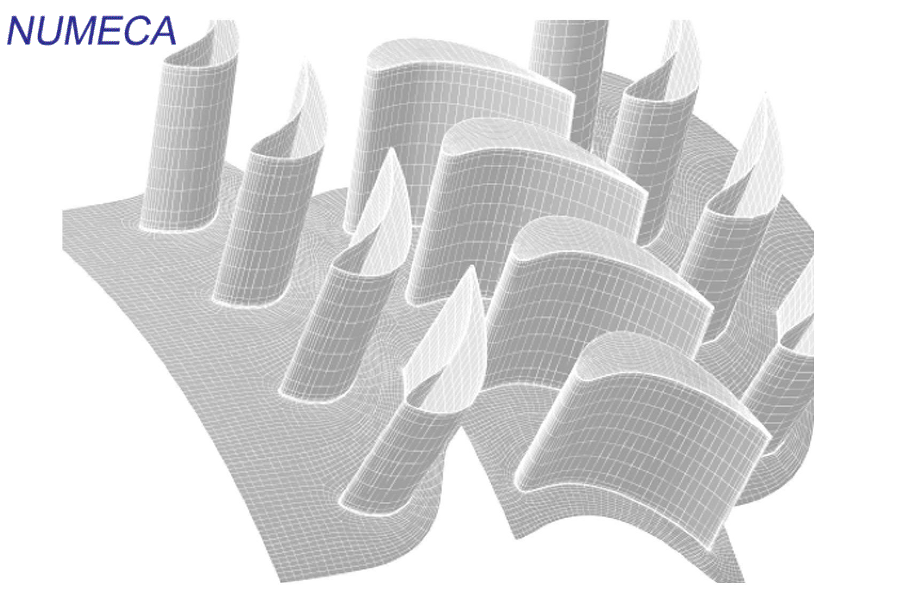

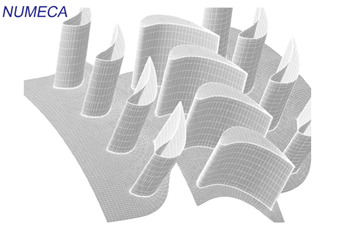

Multistage and bypass configurations;

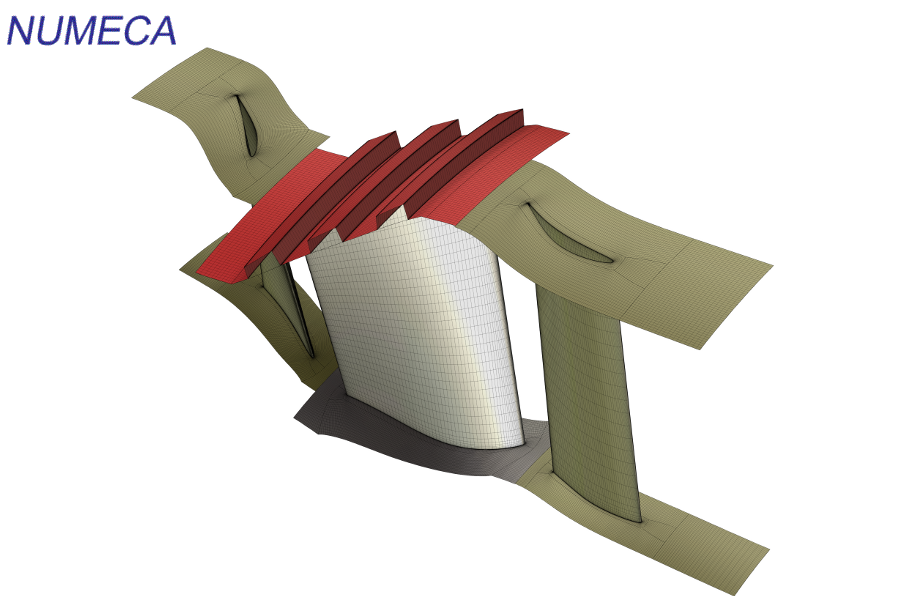

Capturing a large range of geometrical features, such as tip and hub clearance, seal-leakages, rounded and blunt leading and trailing edge, spinners, flow path discontinuities, rotor/stator, inner/row interfaces, non-axisymmetric end walls, bleed ports, cooling holes, tip basins, part-span shroud, etc.
Grid wake refinement;

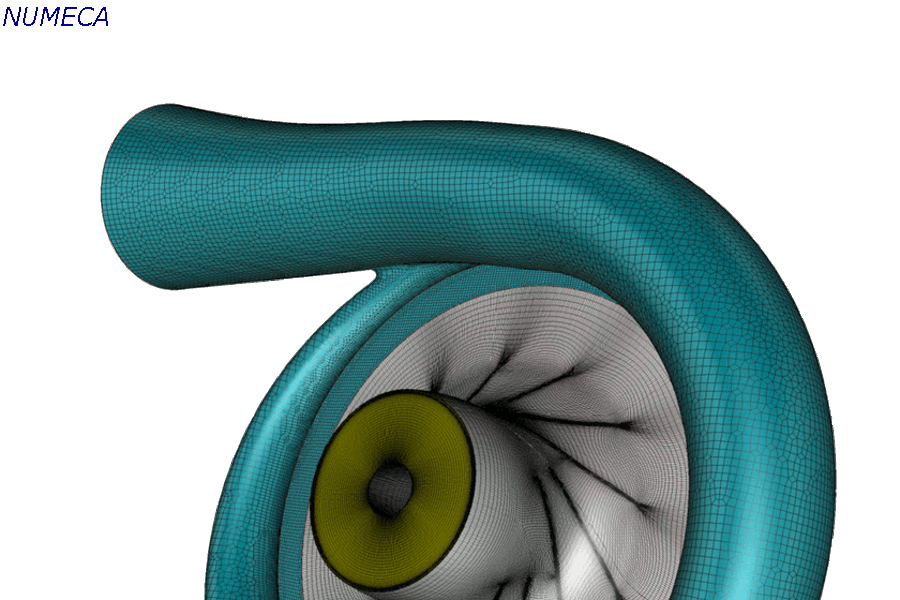

Full connectivity with IGGTM (NUMECA's general structured multiblock grid generator), allowing to interactively mesh up- and downstream components such as nozzle, volute, ducts, condensers, etc.;
Advanced template and script technology for automated meshing of features such as fillets, leakage paths, cavities, etc.
